Tarkett得嘉OMNISPORTS PVC運動地板
產品說明
型號：Tarkett得嘉OMNISPORTS PVC運動地板

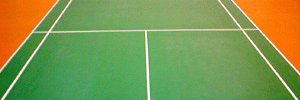

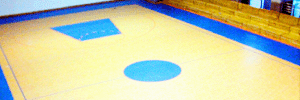

特點：OMNISPORTS，Tarkett得嘉PVC運動地板共5個系列Compact,Speed,Trainning,Reference,Excel，有5種厚度，適用各種室內運動比賽場地，包括籃球場地板、排球場地板、網球場地板、乒乓球場地板、羽毛球場地板等等。
長度：
—Compact：23m
—Speed：20.5/23m
—Trainning：20.5/23m
—Reference：20.5/23m
—Excel：20.5/23m
—Compact：23m
—Speed：20.5/23m
—Trainning：20.5/23m
—Reference：20.5/23m
—Excel：20.5/23m
重量：
—Compact：3.045kg/m2
—Speed：3.295kg/m2
—Trainning：4.08kg/m2
—Reference：4.57kg/m2
—Excel：6.035kg/m2
—Compact：3.045kg/m2
—Speed：3.295kg/m2
—Trainning：4.08kg/m2
—Reference：4.57kg/m2
—Excel：6.035kg/m2
厚度：
—Compact：2mm
—Speed：3.45mm
—Trainning：5mm
—Reference：6.5mm
—Excel：8.3mm
—Compact：2mm
—Speed：3.45mm
—Trainning：5mm
—Reference：6.5mm
—Excel：8.3mm
寬度：
—均為2m
—均為2m
Esquisse
 Beige |
 Dark orange |
 Grey uni |
 Light green |
 Sky blue |
Wood
 Beech |
 Classic oak |
 Dark beech |
 Golden maple |
 Gunstock oak |
 Light maple |
 Maple grey |
 Maple mint green |
 Maple red |
 Maple sky blue |
Uni
 Black |
 Blue |
 Brown |
 Field green |
 Forest |
 Green |
 Grey |
 Magenta |
 Mint green |
 Night blue |
 Orange2 |
 Orange |
 Purple |
 Red |
 Royle blue |
 Teal |
 Yellow |
| TECHICAL CHARACTERISTICS | STANDARDS | OMNISPORTS COMPACT | OMNISPORTS SPEED | OMNISPORTS TRAINNING | OMNISPORTS REFERENCE | OMNISPORTS EXCEL |
| Total thickness | ISO 24346(EN428) | 2mm | 3.45mm | 5 | 6.5mm | 8.3mm |
| Total weight | ISO 23997(EN430) | 3.045kg/m2 | 3.295kg/m2 | 4.08kg/m2 | 4.57kg/m2 | 6.035kg/m2 |
| Width | ISO 23341(EN426) | 2m | 2m | 2m | 2m | 2m |
| Length | ISO 23341(EN426) | 23ml | 20.5/23lm | 20.5/23lm | 20.5/23lm | 20.5/23lm |
| REQUIREMENTS SAFETY IN USE | STANDARDS | OMNISPORTS COMPACT | OMNISPORTS SPEED | OMNISPORTS TRAINNING | OMNISPORTS REFERENCE | OMNISPORTS EXCEL |
| Friction | EN13036-4 | 80-110 | 80-110 | 80-110 | 80-110 | 80-110 |
| Shock absorption | EN14808 | |||||
| Average measured | / | 6% | 19% | 26%-27%-28% | 32%-33%-35% | |
| Required | / | / | / | ≥25% | ≥25% | |
| Vertical Deformation | EN14809 | / | 0.4mm | 1mm | 1.1mm-1.3mm-1.3mm | 1.1mm-1.3mm-1.2mm |
| TECHICAL REQUIREMENTS | STANDARDS | OMNISPORTS COMPACT | OMNISPORTS SPEED | OMNISPORTS TRAINNING | OMNISPORTS REFERENCE | OMNISPORTS EXCEL |
| Vertical ball behaviour | EN12235 | / | 98% | 98.40% | 100%-99%-100% | 100%-99%-98% |
| Reaction to fire | EN13501-1 | Bfls1 | Cfls1 | Cfls1 | Cfls1 | Cfls1 |
| Resistance to wear | EN ISO5470-1 | / | ≤1g | ≤1g | ≤1g | ≤1g |
| Resistance to indentation | EN1516 | / | ||||
| Average measured | / | 0.18mm | 0.16mm | 0.21mm-0.4mm | 0.29mm-0.39mm | |
| Requirement | / | ≤0.5mm | ≤0.5mm | ≤0.5mm | ≤0.5mm | |
| Resistance to a rolling load | EN1569 | / | / | 0.22mm | 0.3mm-0.4mm | 0.1mm-0.3mm |
| Impact sound reduction | EN ISO717-2 | 2dB | 19dB | 19dB | 20dB | 20dB |
| In room noise | NFS 31-074 | Ln,e,w=77dB | ClassA≤65dB | ClassA≤65dB | ClassA≤65dB | ClassA≤65dB |
| Thermal resistance | EN ISO10456 | 0.02m2 K/W | 0.04m2 K/W | 0.07m2 K/W | 0.1m2 K/W | 0.1m2 K/W |
| Colors | Uni:10 Wood:4 | Uni:11 Wood:4 | Uni:10 Wood:4 | Uni:17, Wood:6,Colored wood:4-Esquisse:5 |
Uni:17, Wood:6Colored wood:4-Esquisse:5 |
|
型 號：Tarkett得嘉PVC運動地板系列（舊版本） 特 點：專為運動場而設計的多層式塑膠地板，適用于大小型室內各種運動比賽場地，如籃球場地板、排球場地板、網球場地板、乒乓球場地板、羽毛球場地板等運動地板。 |
  |
|
|
|
|
|
|
|
|
|
|
|
